Wurkkos DL10R

Wurkkos DL10R is a professional, bright diving flashlight, both powerful and IPX-8 water resistant. It is powered by a single 21700 li-ion rechargeable battery and comes with a hidden USB-C port for internal charging. Simple one hand operation via a magnetic control ring guarantees super easy handling both above and below the waterline. Moreover, DL10R’s simplified user interface with three brightness modes enables quick and carefree interaction even under distress.
Using  XHP70.2 emitter with a neutral white tint (approx. 5000K CCT) makes DL10R a powerful tool with up to 4.500 lumens and a maximum beam distance of 287m.

Specifications

♣Emitter: 1x XHP70.2 4700K - 5000K
♣Reflector: orange peel reflector
♣Driver: Constant current boost driver
♣Operating voltage: 2.8V – 4.5V
♣Low standby drain: 60μA
♣Battery options: 1x 21700 li-ion battery only (admissible tolerance: 70-72mm)

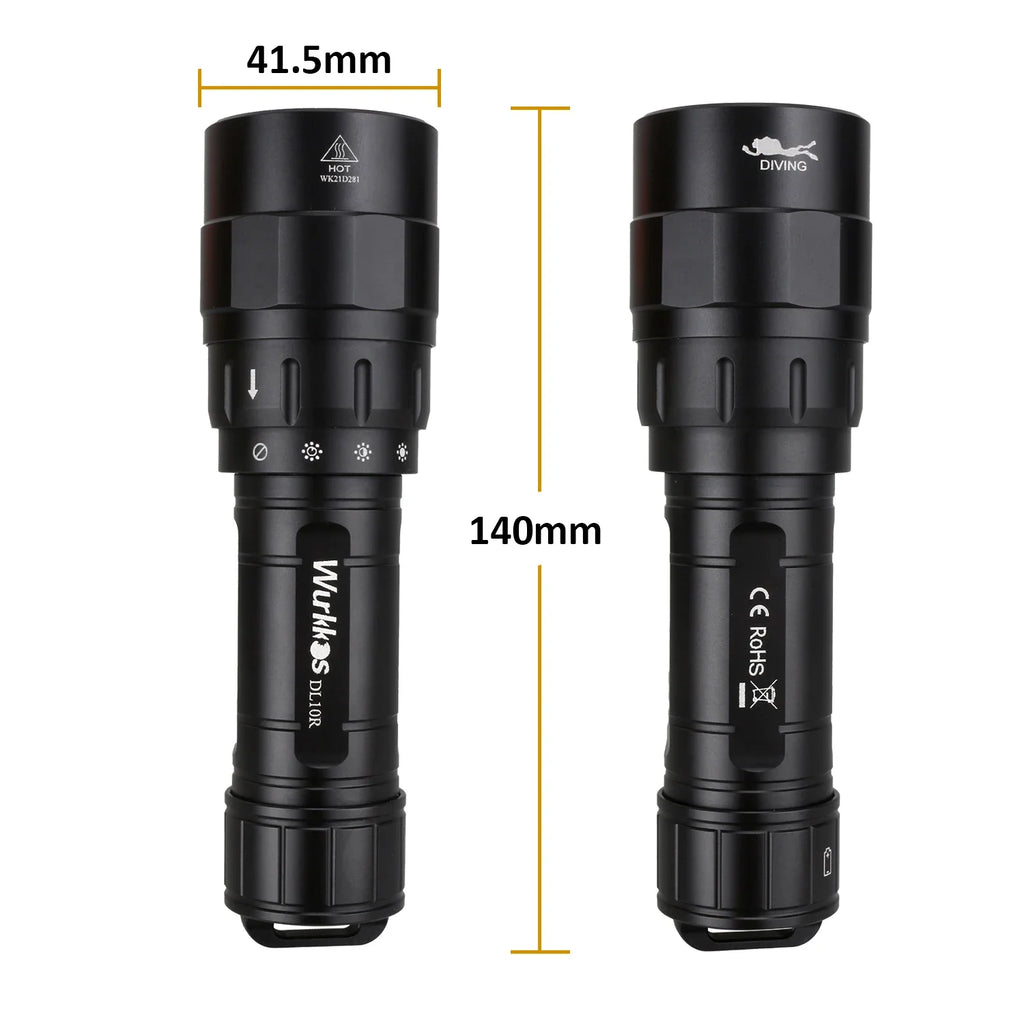

♣Dimension: 140mm (length) x 41.5mm (head diameter)
♣Weight: 176g/0.39lb (without battery)
♣Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC manufactured to hard-anodized to military grade specification type III, anti-abrasive finish to get solid built body, anti-crash geometry and better heat exchange.
♣Toughened mineral glass lens
♣Water resistance i.a.w. IPX-8 (up to 100m / 164yd under water)
♣Reverse polarity protection to protect against improper battery installation.
♣Advanced Temperature Regulation (ATR) technology: ATR automatically reduces the brightness level when the driver temperature reaches 55°C to prevent overheating
♣Low power protection: If the battery’s voltage is too low, the output will step down accordingly to prolong battery runtime.
♣Low voltage warning: When the battery voltage is low, the LED will start to flash quickly once every minute as a reminder to replace or recharge the battery. Please replace or recharge the battery in time to avoid any danger while diving.
♣Low voltage protection: If the battery’s voltage is too low, DL10R turns off automatically to avoid battery damage by over discharge.

Recharging

DL10R is supplied with one rechargeable 21700 Li-ion battery and an integrated USB-C port hidden in the tailcap. Uscrew the tailcap from the tube to get access to the USB-C port and connect it with the supplied cable to a 5V 2A power supply. While charging the LED power indicator shines red. Once finished the indicator will turn green to indicate a full battery. Please make sure to screw the tailcap back onto the tube after charging. Only recharge the battery in dry conditions to prevent any water ingress.

Operation Instructions

DL10R uses a magnetic control ring. Rotate the ring to turn the light on/off and to change modes between low, medium and high.
